RTMP (Real-Time Messaging Protocol) is a protocol used to transmit video, audio, and data from the PRISM app to streaming platform servers, requiring both a stream URL and a stream key.
The PRISM app support a login-based method for Facebook. However, You may rarely experience login issues within PRISM app with various reasons. Most login failures are resolved within a few hours, you might want to connect temporary while than.
A manual RTMP connection does not support information such as chat and number of viewers on screen. Additionally, a PC is required to connect and start live streaming on Facebook via RTMP, as it requires access to the Facebook Live Dashboard.
To connect Facebook via RTMP, follow the instructions below.

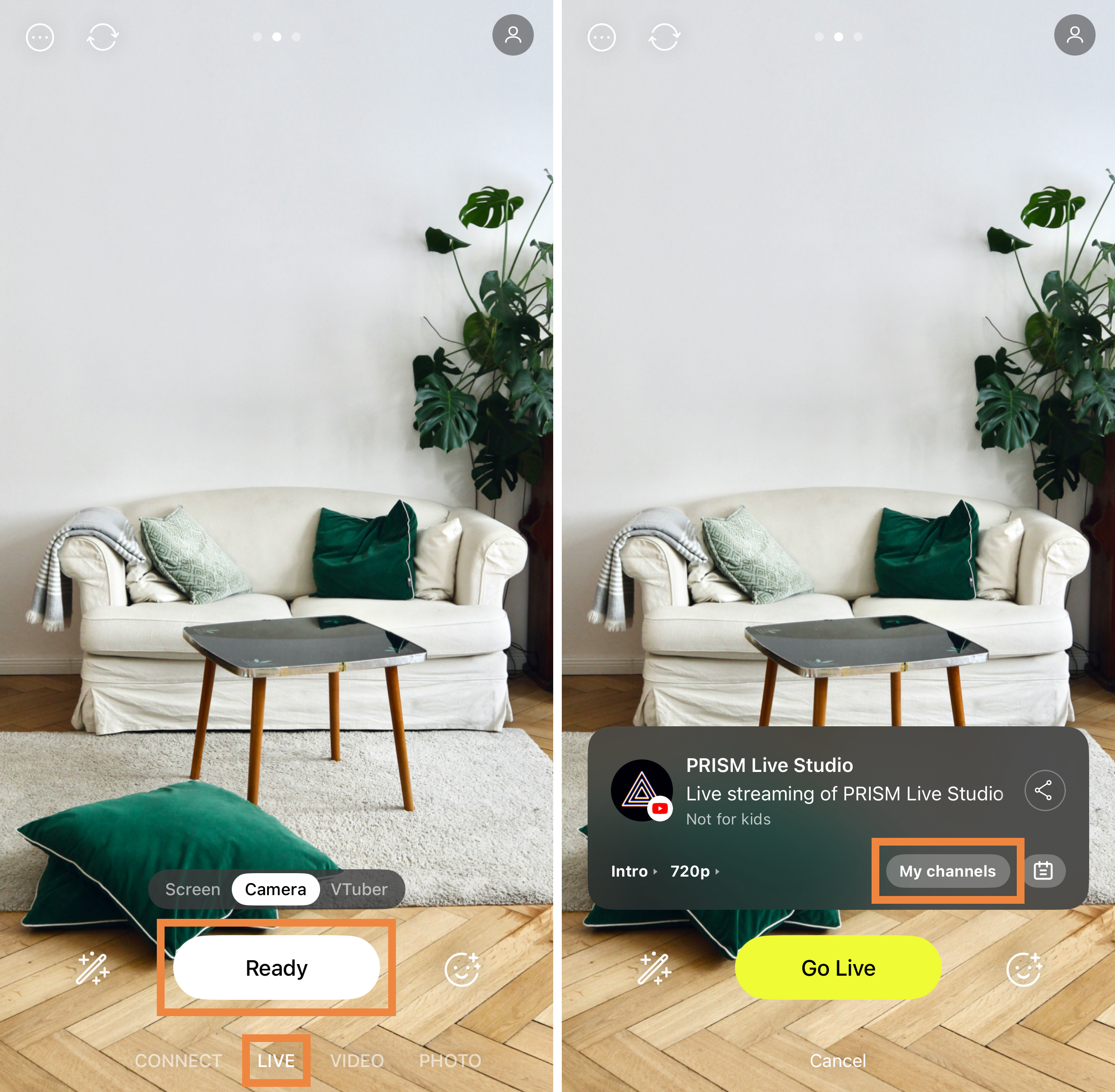

Step 1: In the LIVE tab, click the Ready button and go to My channels.

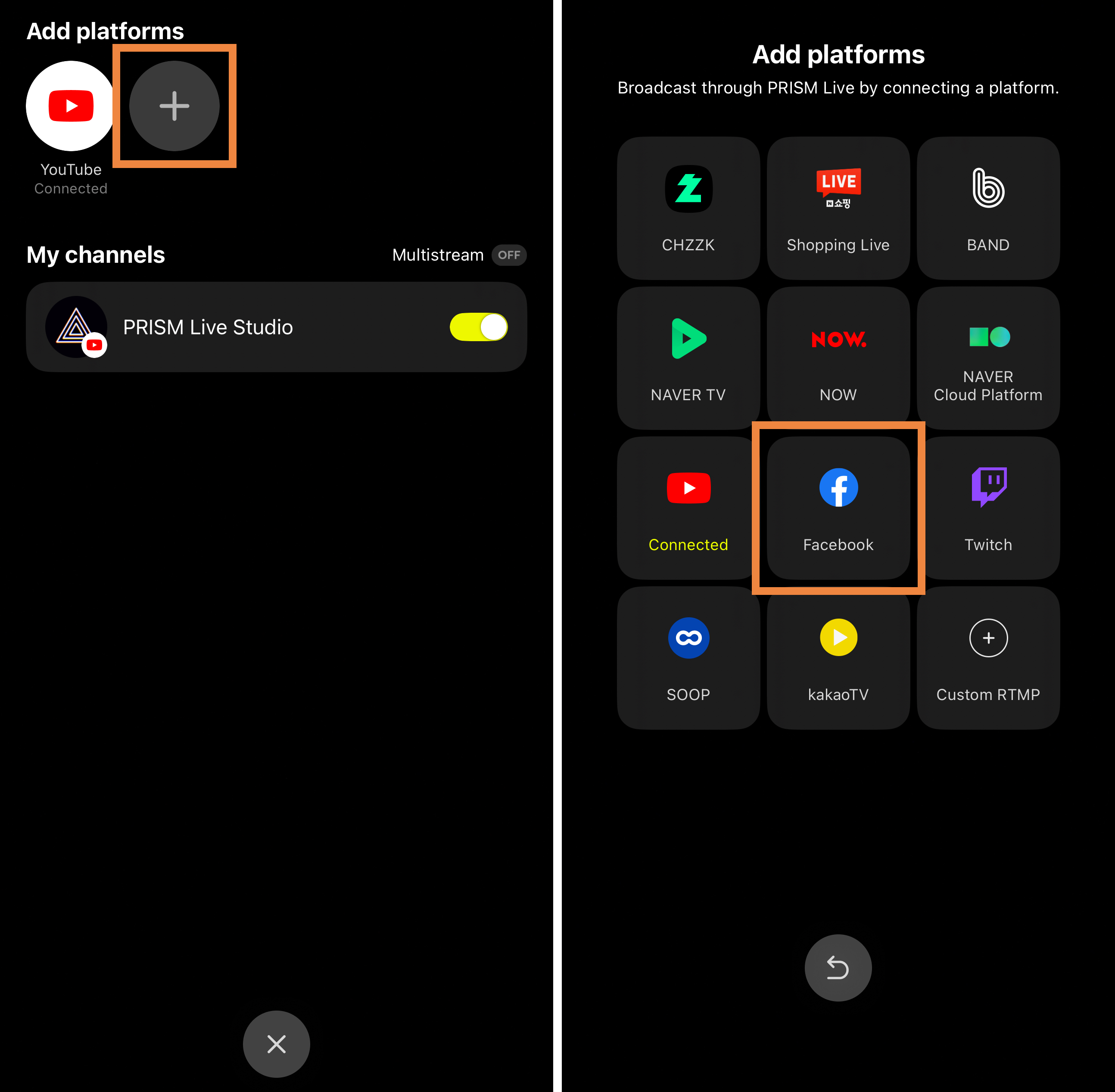

Step 2: Click the Plus (+) button and select Facebook.

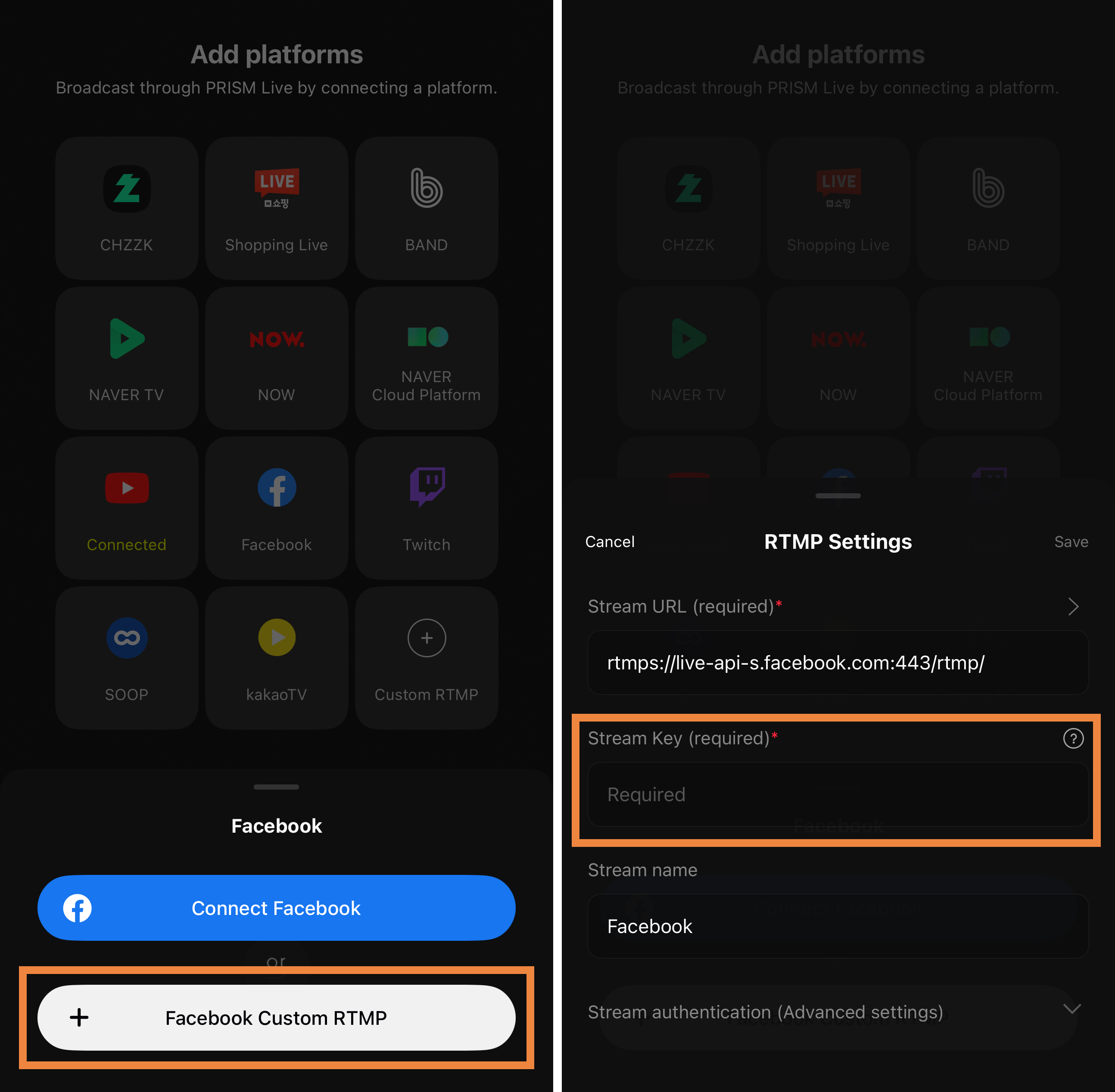

Step 3: Select Facebook Custom RTMP and enter the Stream Key from Facebook Live Dashboard. The Stream URL will be automatically filled using the RTMP preset, but you must enter your own Stream Key from Facebook. Instructions on how to retrieve the Stream Key are provided below:

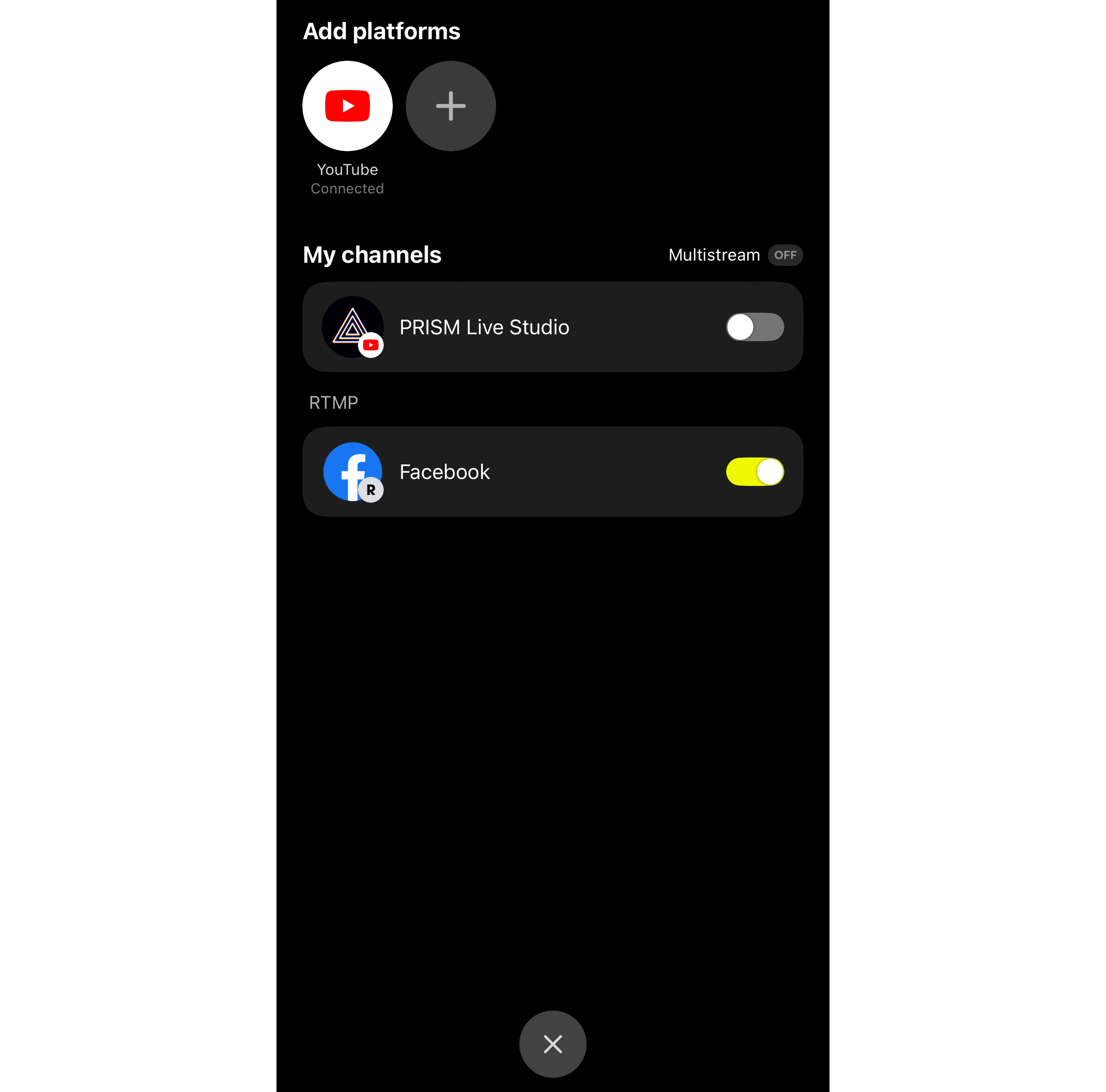

Once you’ve entered the Stream Key, click the Save button to complete the process.
To start live streaming on Facebook with RTMP, first, click Go Live in the PRISM app, then go to the Facebook Live Producer website and log in to your account. You can visit the website via the link below on your PC:

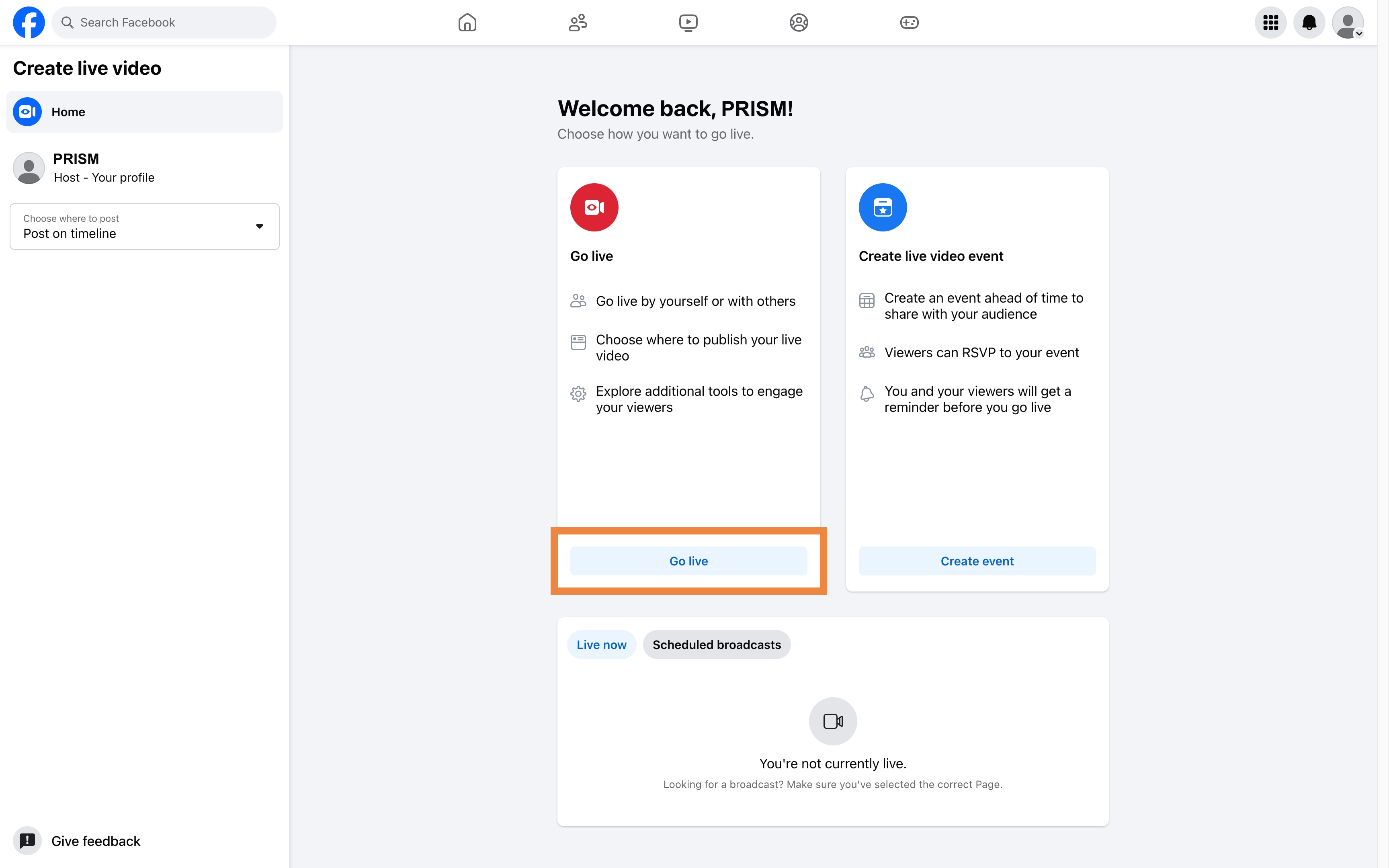

On the Facebook Live Producer page, select Go Live.

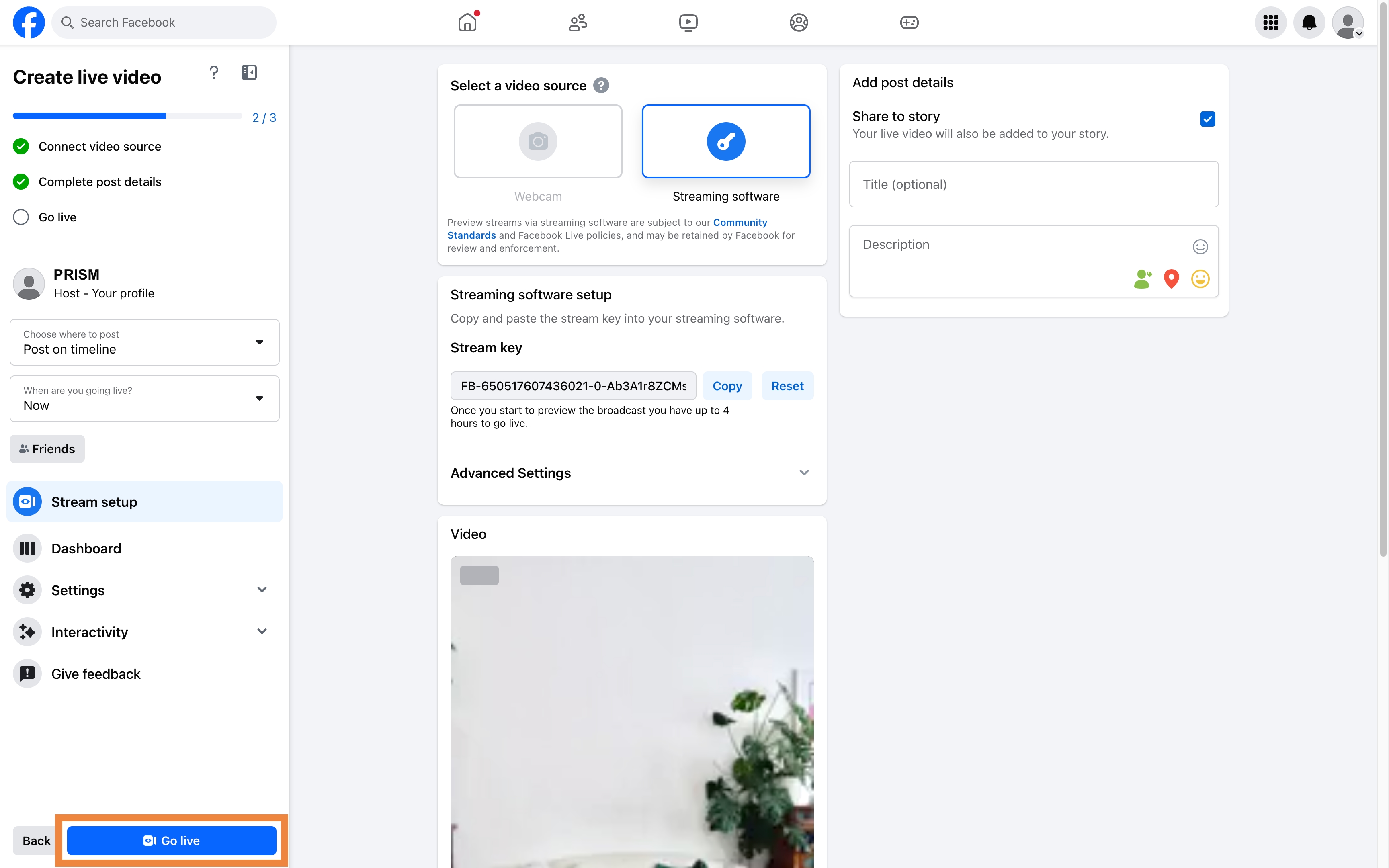

Check if the video feed from PRISM app is displayed correctly. Configure various options provided by Facebook. Once you’re ready, click Go Live to start your live broadcast.
The Stream Key is a unique code that links the PRISM app to Facebook’s streaming servers, allowing your stream to be transmitted to your page or profile.
To get the stream key for Facebook, follow the instructions below:
Step 1: Go to the Facebook Live Producer website and log in to your account. You can visit the website via the link below on your PC:
Step 2: Select Go Live.

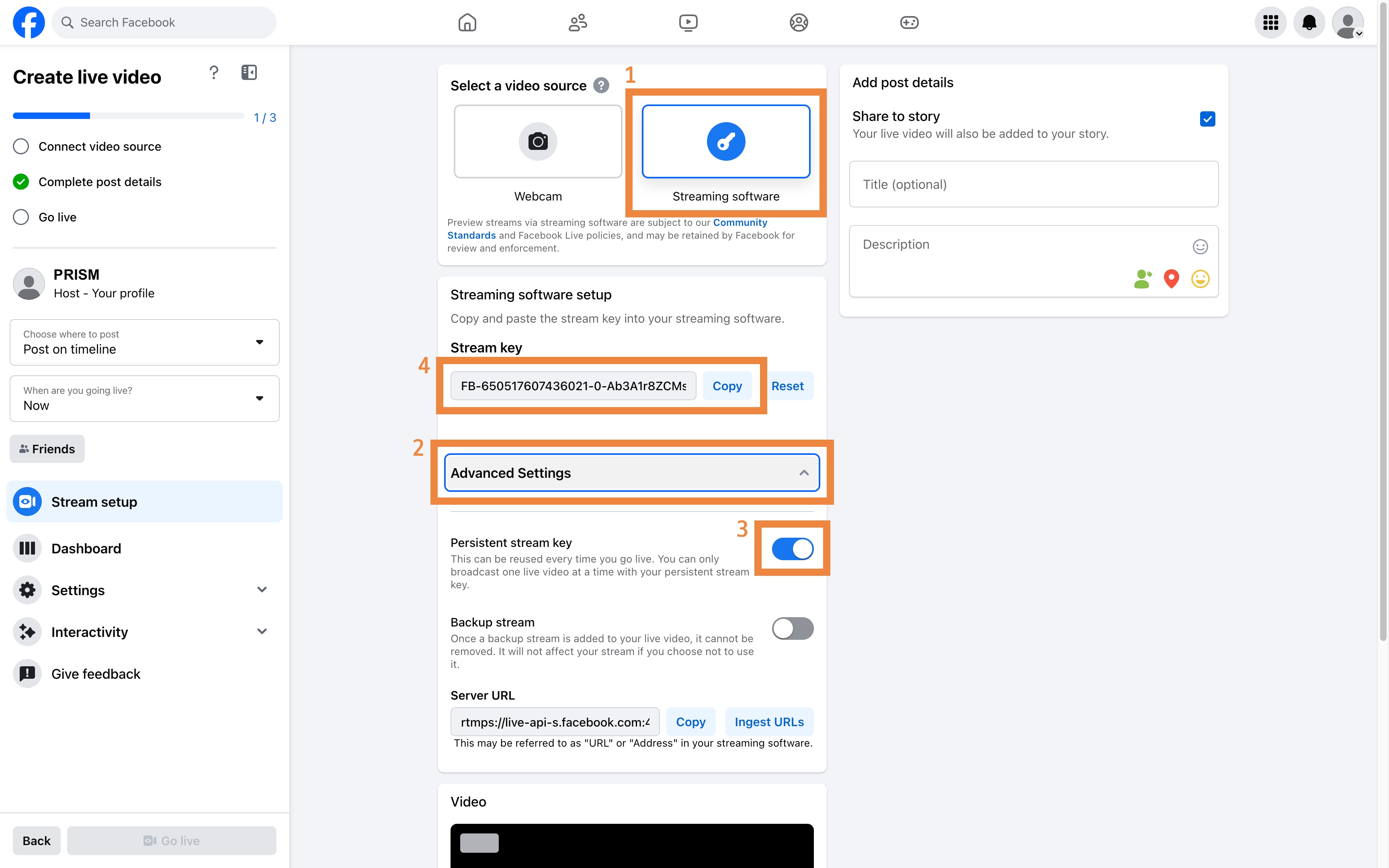

Step 3: Select Streaming software as the video source and copy the Persistent Stream Key. After selecting Streaming software as the video source, scroll down and click Advanced Settings to expand the section. Toggle on the Persistent Stream Key option if you want to use the same key for future broadcasts, which eliminates the need to copy a new key each time. Then, copy the Stream Key displayed on the screen.
Be sure to keep your stream key private. It is a unique code that links your broadcast to your channel, and sharing it could allow others to stream on your channel without permission.
